ANTRACK
Note: Please note that the current price for this product does not include shipping fees. After ordering, kindly contact your sales manager/Customer Service Robot or email (sales@bitmain.com) to confirm your shipping method and obtain the final shipping cost.
Specifications |
1Set 24kW 4 Hydro-cooling Miner Rack |
| Specifications
| Product Glance | Value |
| Model | ANTRACK |
| Version | V1 |
| Capacity | 4 units ANTMINER (S19 Hyd./S21 Hyd. series) |
| Maximum load,kW | 24 |
| Detailed Characteristics | Value |
| Hardware Configuration | |
| Size (Length*Width*Height), mm (without package) | 1000*600*2100 |
| Size (Length*Width*Height), mm (with package) | 2260*1130*780 |
| Net weight, kg (without package) | 207 |
| Gross weight, kg (with package) | 300 |
| Network connection mode | EJ45 Ethernet 10/100M |
| Power Supply | |
| Power supply AC Input voltage, Volt(1-1) | 380~415 |
| Power supply AC Input Frequency Range, Hz | 50~60 |
| Power supply AC Input current, Amp(1-2) | 80 |
| Environment Requirements | |
| Ambient temperature, °C(1-3) | 15~45 |
| Water flow, L/min | 32.0~40.0 |
| Water pressure, bar | ≤3.5 |
| Working fluid(1-4) | Antifreeze (10%) |
| Liquid PH | 7.8~8.5 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
Notes:
(1-1) Caution: Wrong input voltage may probably cause miner damaged.
(1-2) Three-phase AC input.
(1-3) Please keep the ANTRACK V1’s ambient temperature between 15 °C and 45 °C. Maintain at least 1 m of clearance in front of and behind the unit, and ensure adequate room ventilation to prevent exhaust-air recirculation. Under normal operation, the miner’s inlet-water temperature will be about 5 °C above ambient. When operating with older models (e.g. S19 Hyd., T19 Hyd., S19 Pro Hyd., S19 Pro+ Hyd., T19 Pro Hyd., S19 XP Hyd.), ensure the ambient temperature does not exceed 35 °C.
(1-4) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.

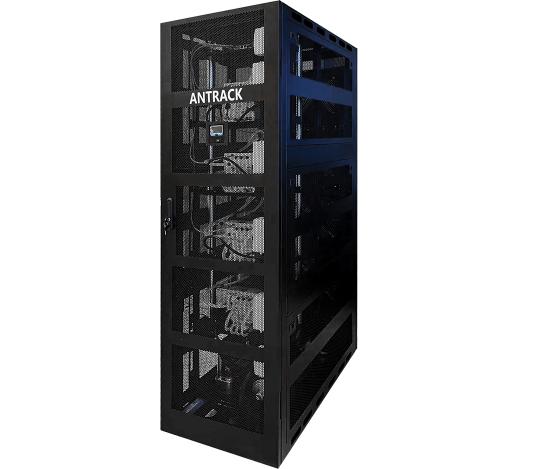

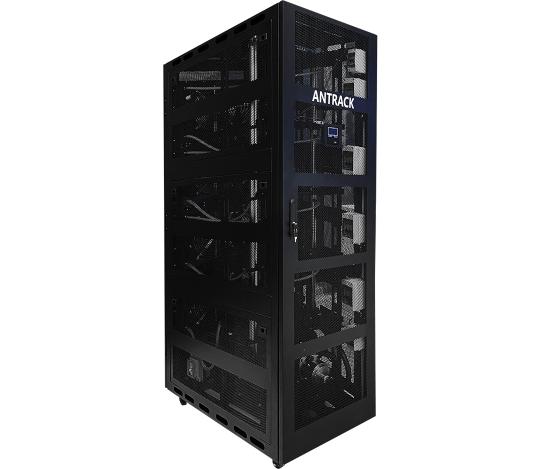

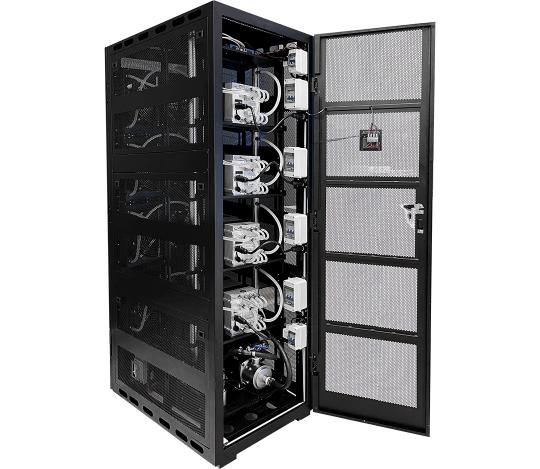

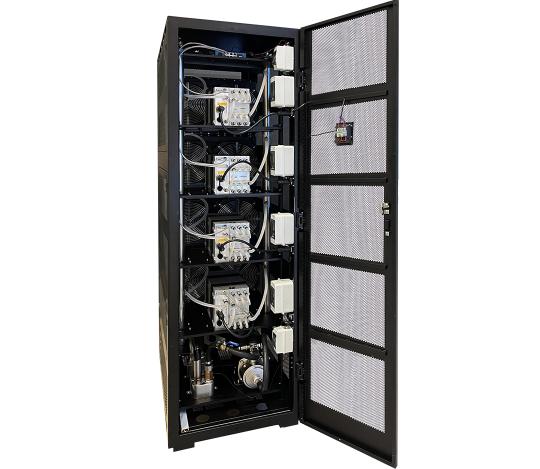

PS: An ANTRACK unit features four rack slots, each equipped with one network cable and one power cable tailored for Hydro-cooling miners. The unit also includes a water pump, eight fans, a heat exchanger and a plate heat exchanger.
For smooth operation of the ANTRACK system, please prepare the following additional items:
• A three‑phase, five‑core 380–415 V AC power cable (6AWG)
• An Ethernet cable
• 20 L of 10 % antifreeze
| Purchasing Guidelines
1. The ANTRACK is recommended to be used simultaneously with the Hydro-cooling ANTMINERS.
2. The pictures shown are for reference only; the final shipment version shall prevail.
3. Contact Customer Service Robot to review the shipping cost.
4. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
| Shipping Details
1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and prepare all customs documentation ahead of time to avoid delays or unexpected costs.
| Warranty
1. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
| Hashrate | 1Set |
|---|---|
| Power (W) | 24K |
Related Products

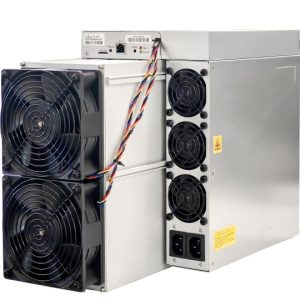

ETC Miner E11
