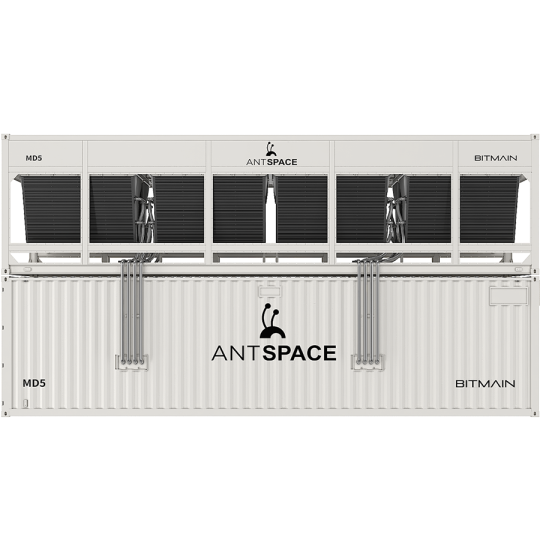

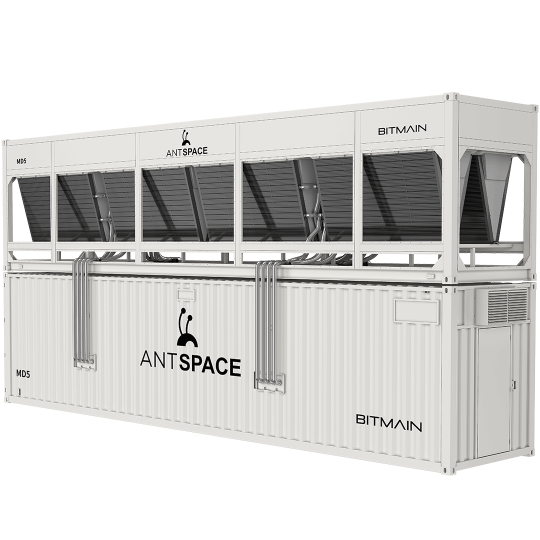

ANTSPACE MD5
| Specifications | 1Set 1000KW 160 Rack Space |
| Specifications
Specifications For ANTSPACE MD5
| Product Overview | Value |
| Model | ANTSPACE MD5 |
| Dimensions (l*w*h), mm | 12192×2438×2896 |
| Miner capacity | 160 units -S21 Imm. & S21 XP Imm. |
| Container certification | China Classification Society Certification |
| Safety certification | NFPA 79: 2024 UL 508A: 2018 R7.22 CSA C22.2 No. 301:23 ANSI/ISO 12100: 2012 EN ISO 12100: 2010 EN 60204-1: 2018 |
| Operating power, kW | 1000 |
| PUE(Power usage effectiveness), @25℃ ambient temperature | 1.06 |
| Input voltage and frequency | 400V±5% 50/60Hz |
| Detailed Characteristics | Value |
| Shipping weight, T | 12 |
| Operating weight, T | 18.5 |
| Main switch of power distribution cabinets, A | 1200*2 |
| Rated current, A | A: 952; B: 866 |
| Rated Current per Miner, A | 20 |
| Inlet cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements: L1 single core cable 600kcMil(300mm²)x4 L2 single core cable 600kcMil(300mm²)x4 L3 single core cable 600kcMil(300mm²)x4 N single-core cable 600kcMil(300mm²)x4 PE single-core cable 500kcMil(240mm²)x2 |
| Connection interface (Cooling Tower) | DN 65 (ISO2852 PN16） |
Specifications For Dry Tower
| Product Overview | Value |
| Dimensions(L*W*H), mm | 12192×2438×2896 |
| Outlet Temperature @30℃ ambient temperature | 35℃ (Outlet temp 5℃ above ambient temp) |
| Container Certification | China Classification Society Certification |
| Operating Power, kW | 100 |
| Motor Rated Voltage and Frequency | 400V±5% 50/60Hz |
| Detailed Characteristics | Value |
| Shipping weight, T | 11.8 |
| Operating weight, T | 12.8 |
| Connection interface | DN 65 (ISO2852 PN16） |
| Noise Level @25℃， 15m, dBA | 70 |
| Pipe materials | 304 stainless steel |
| Points For Attention
| 1 | The cooling tower is required to be placed on flat ground, with a horizontal alignment within ±1 degree. |
| 2 | The ground surface is required to be hardened and stable, able to withstand at least a 14-ton load. |
| 3 | A 15-ton crane is required for unloading an ANTSPACE unit and a cooling tower. |
| 4 | Add-on items such as stairs, transformers, cables, bridge racks and cable distribution boxes are not included in the delivery of ANTSPACE. The BITMAIN team can provide design suggestions if needed. |
| 5 | The client needs to confirm the opening direction of the container, which should face the air intake. The door on the left is designed by default. |
| 6 | Keep at least 4 meters of air intake space around the cooling tower. |
| 7 | Altitude: ≤3000m. If the altitude exceeds 1000 meters, the transformer and switch should be derated. Additionally, the total power of ANTSPACE must be decreased by 1% for every additional 100 meters of elevation. |
| 8 | The internal circulation system should be turned on to heat the coolant to above 20°C before starting the mining machine. |
| 9 | The suitable ambient temperature for ANTSPACE does not necessarily correspond to the suitable ambient temperature for the mining machine. |
| Purchasing Guidelines
1. It is recommended to use the ANTSPACE MD5 simultaneously with the ANTMINER S21 Imm. or ANTMINER S21 XP Imm.
2. The pictures shown are for reference only; the final shipment version shall prevail.
| Shipping Details
1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments resulting from inadequate documentation. It is highly recommended that you familiarize yourself with local customs clearance policies and prepare all necessary customs documentation in advance to avoid delays or unexpected costs.
| Warranty
1. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
1 review for ANTSPACE MD5
| 5 star | 0% | |
| 4 star | 100% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Related Products

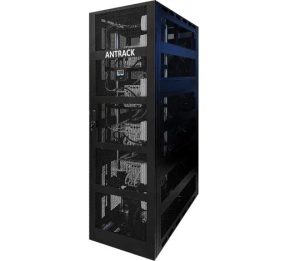

ANTRACK & Bitcoin Miner S21e Hyd. Package
