ANTRACK & Bitcoin Miner S19 Pro+ Hyd. Package
Note: 1) Package sale of one ANTRACK and four S19 Pro+ Hyd. S19 Pro+ Hyd. could be shipped out from China or overseas factories. 2) Please note that the current price for this product does not include shipping fees. After ordering, kindly contact your sales manager to confirm your shipping method and obtain the final shipping cost.
Specifications |
764T 23.6kW 4 Hydro-cooling Miner Rack |
| Specifications

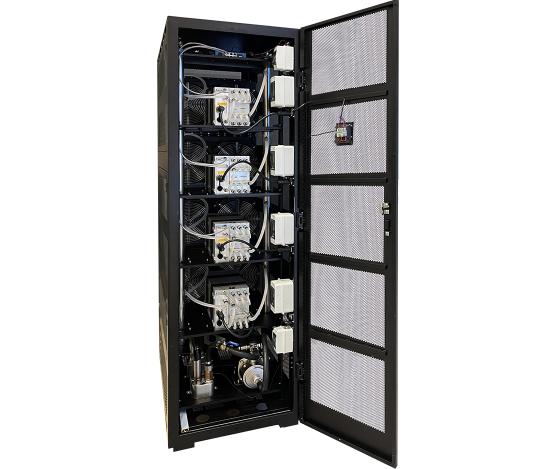

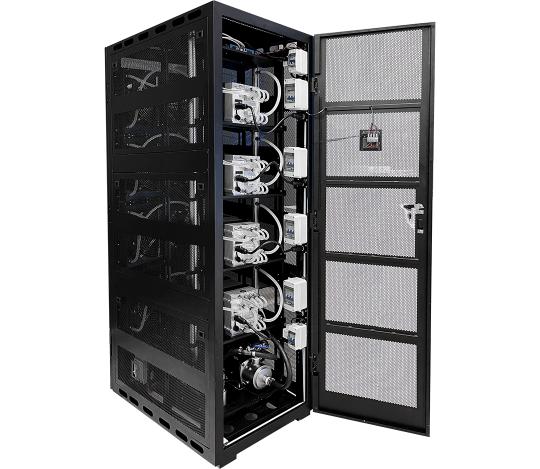

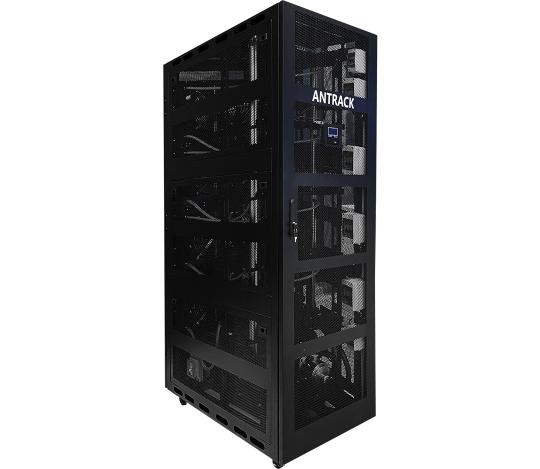

Specification Details For ANTRACK
| Product Glance | |
| Model | ANTRACK |
| Version | V1 |
| Capacity | 4 units ANTMINER (Hydro) |
| Maximum load, kW | 24 |
| Detailed Characteristics | |
| Hardware configuration | |
| Size (length*width*height), mm (without package) | 1000*600*2100 |
| Size (length*width*height), mm (with package) | 2260*1130*780 |
| Net weight, kg (without package) | 207 |
| Gross weight, kg (with package) | 300 |
| Network connection mode | EJ45 Ethernet 10/100M |
| Power supply | |
| Power supply AC input voltage, Volt(1-1) | 380~415 |
| Power supply AC input frequency range, Hz | 50~60 |
| Power supply AC Input current, Amp(1-2) | 80 |
| Fan | |
| Rated power, W | 120 |
| Noise, dBA@1m | 68 |
| Size (Length*Height*Thickness), mm | 280*280*80 |
| Pump | |
| Rated power, W | 450 |
| Noise, dBA@1m | 55 |
| Size (Length*Height*Thickness), mm | 360*210*268 |
| Plate Heat Exchanger | |
| Maximum heat exchange power, kW | 30 |
| Size (Length*Width* Height), mm | 305*106*64 |
| Diameter of water pipe connector, mm | DN25 |
| Environment requirements | |
| Ambient temperature, °C(1-3) | 15~45 |
| Water flow, L/min | 32.0~40.0 |
| Water pressure, bar | ≤3.5 |
| Working fluid(1-4) | Antifreeze (10%) |
| Liquid PH | 7.8~8.5 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
NOTE:
(1-1) Caution: Wrong input voltage may probably cause miner damaged.
(1-2) Three-phase AC input.
(1-3) Please keep the ANTRACK V1’s ambient temperature between 15 °C and 45 °C. Maintain at least 1 m of clearance in front of and behind the unit, and ensure adequate room ventilation to prevent exhaust-air recirculation. Under normal operation, the miner’s inlet-water temperature will be about 5 °C above ambient. When operating with older models (e.g. S19 Hyd., T19 Hyd., S19 Pro Hyd., S19 Pro+ Hyd., T19 Pro Hyd., S19 XP Hyd.), ensure the ambient temperature does not exceed 35 °C.
(1-4) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.

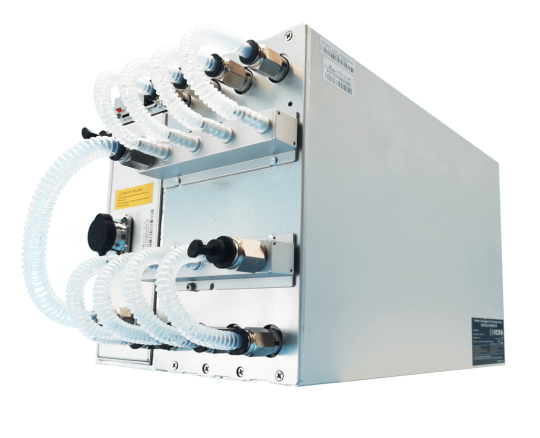

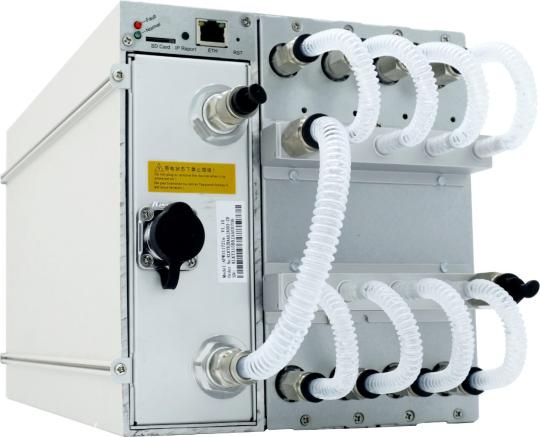

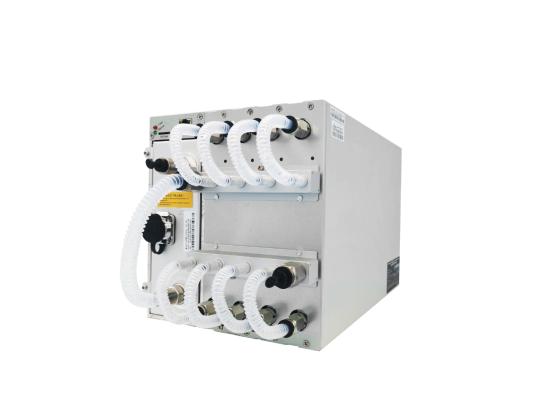

Specification Details For S19 Pro+ Hyd.
| Product Glance | Value |
| Model | S19 Pro+ Hyd. |
| Crypto algorithm/conis | SHA256 | BTC/BCH/BSV |
| Typical hashrate, TH/s(1-1) | 191 |
| Power on wall @35°C(1-2), Watt(1-1) | 5252.5 |
| Power efficiency on wall @35°C(1-2), J/T(1-1) | 27.5 |
| Detailed characteristics | Value |
| Power supply | |
| Phase | 3 |
| Input voltage, Volt(2-1) | 380~415 |
| Input frequency range, Hz | 50~60 |
| Input max current, Amp | 12 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Server size (length*width*height, w/o package), mm | 410*196*209 |
| Server size (length*width*height, with package), mm | 570*316*430 |
| Net weight, kg | 15.2 |
| Gross weight, kg | 17.5 |
| Environment Requirements | |
| Inlet coolant temperature,°C | 20~40 |
| Coolant flow, L/min | 8.0 ~ 10.0 |
| Coolant pressure, bar | ≤3.5 |
| Working coolant(2-2) | Antifreeze/ Pure water/Deionized water |
| Coolant pH value | Antifreeze:7.0~9.0
Pure water:6.5~7.5 Deionized water:8.5~9.5 |
| Diameter of coolant pipe connector, mm | OD10 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10%~90% |
Notes:
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(1-2) Inlet water temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) For detailed working coolant use and maintenance instructions, please refer to “ANTSPACE HK3 Water Cooling Container & Dry-Wet Tower Product Manual”, Chapter 9, Article 3, Point 6, “Maintenance of Coolant”!
| Purchasing Guidelines
NOTES
1. The ANTRACK is recommended to be used simultaneously with The hydro-cooling miners.
2. The pictures shown are for reference only; the final shipment version shall prevail.
3. Contact Customer Service Robot to review the shipping cost.
SHIPPING DETAILS
1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and prepare all customs documentation ahead of time to avoid delays or unexpected costs.
| Warrenty
1. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
| Hashrate | 764T |
|---|---|
| Power (W) | 23.6K |
